Technical Specifications ▶
Model CX-DC-20WD CX-DC-30WD CX-DC-40WD
Output Power20kW30kW40kW
Output Current67A100A133A
Output Voltage150–1000V
Input Voltage260–475V
Input Connection3P+N+PE
Input Current32A45A64A
Frequency50/60 Hz
Power Factor>0.99 @ rated voltage
Efficiency95%
Display7-inch display
Dimensions (mm)450×250×650
Weight44KG56KG70KG
Operating Temperature-20°C to +50°C
Altitude2000M
IP LevelIP54
Working HumidityRH ≤ 95%
Input Cable Length0M (customizable)
Gun Cable Length5M (customizable)
Interface StandardCCS / CHAdeMO / GB/T
Charging ProtocolGB/T27930, CHAdeMO 2.0, DIN 70121, ISO 15118
Request Quote

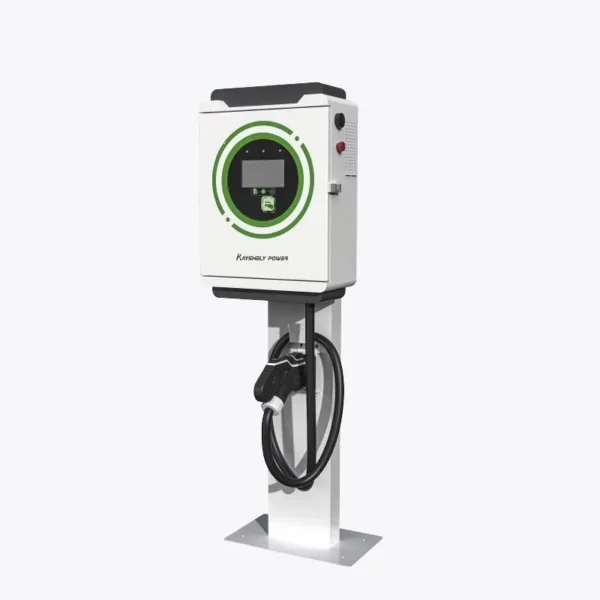

20/30/40KW EV Charger

Compact and fashionable design

The latest design is compatible with all EVs, and the compact and fashionable appearance can match the style of all your modern home and business buildings, featuring high cost-effectiveness and steady performance.

Easy to use

It supports various payment methods such as RFID, credit card, APP, etc., and users can flexibly operate the EV charger via HMI or view all parameters through the classic LED display.

Safety and protection

It complies with the latest leakage protection standard, provides multiple protections to ensure user safety, and has an IP55 protection level (the display is IK08).

Innovation

Rail mounting makes installation easy, and it has intelligent error diagnosis functions.
