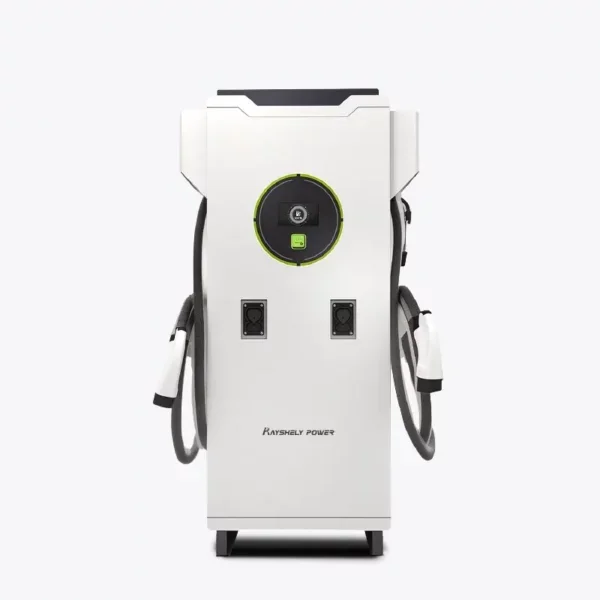

60-320KW EV Charger

Low standby power

Less than 10W, helping reduce operating costs.

Wide output voltage

150V–1000V, suitable for most EVs.

High power density

Compact size saves space and lowers transportation costs.

Efficient heat dissipation

Advanced air duct technology ensures reliability.

Full safety protection

Built-in safeguards for safe usage.

Customizable UI

Flexible interface style tailored to client requirements.

      DC Fast Charger Specifications
      ▶




            Model
            CXE-D60K (CCS)1000
            CXE-D120K (CCS)1000
            CXE-D160K (CCS)1000
            CXE-D180K (CCS)1000
            CXE-D240K (CCS)1000
            CXE-D320K (CCS)1000


        Output Power60kW120kW160kW180kW240kW320kW
Current Range1–200A1–250A1–250A0–250A0–250A0–250A
Input VoltageAC380V±15%
Input Frequency50/60Hz
Output Voltage200–1000VDC
Constant Power Range300–1000VDC
Charging Gun5M charging gun with GB/T, CCS2, CCS1 (length customizable)
Communication Interface4G / LAN / WIFI
Stable Voltage Accuracy≤0.5%
Stable Current Accuracy≤1%
HMI7-inch color touchscreen
Efficiency>95%
Power Factor≥0.99
Current Sharing Coefficient≤5%
Harmonic Current≤5%
Noise≤65dB
Metering AccuracyLevel 1
IP GradeIP54
Standby Power≤N*50W
CoolingFan cooling
ESD ImmunityClass 4
Surge ImmunityClass 4
Working Temperature-20℃ to +50℃
Working Humidity5%–95% no condensation
Altitude≤2000M
Dimensions (WxDxH)720mm × 547mm × 1790mm
