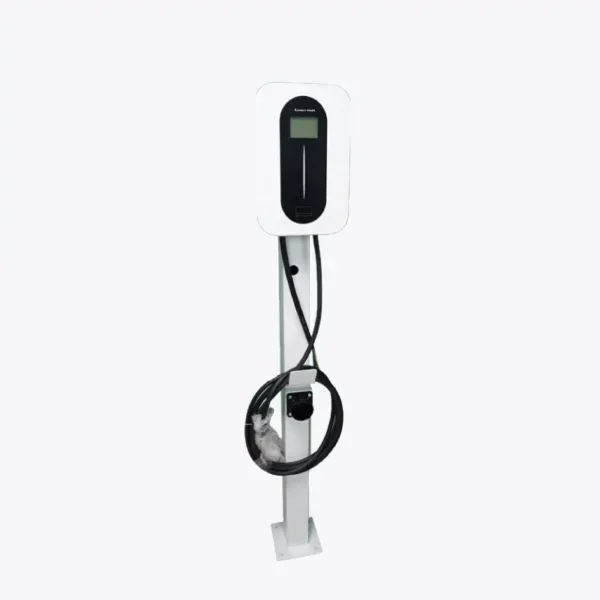

7/11/22KW EV Charger
Compact & Fashionable Design
Modern look fits residential and commercial spaces, offering cost-effective and steady performance.
Easy to Use
Supports RFID, credit card, mobile app and HMI with LED display for full control and visibility.
Advanced Safety & Protection
Multiple protection layers including leakage protection; IP55 rating (display is IK08).
Smart Innovation
Rail mounting for easy install and intelligent error diagnosis for safe operation.
AC Charger Specifications (CXE-A Series)
▶
| Model | CXE-A035B | CXE-A07B | CXE-A11B | CXE-A22B |
|---|---|---|---|---|
| Power supply | 1P+N+PE | 1P+N+PE | 3P+N+PE | 3P+N+PE |
| Rated voltage | 230VAC | 400VAC | ||
| Frequency | 50/60Hz | |||
| Rated current | 16A (Max) | 32A (Max) | 16A (Max) | 32A (Max) |
| Rated power | 3.5kW | 7kW | 11kW | 22kW |
| Recommended cable | 3x2.5mm² copper | 3x6mm² copper | 5x2.5mm² copper | 5x6mm² copper |
| Charging plug | IEC62196-2, Type 2, 1-3 phase plug + 4.8m cable | |||
| Start mode | Plug-and-play / RFID card / APP* | |||
| Display screen | 3.5-inch LCD screen (voltage, time, state & fault info) | |||
| LED indicator | LED strip indicates 5 statuses (see description) | |||
| Communication interface | WiFi / Ethernet / 4G (optional) | |||
| Communication protocol | OCPP 1.6J | |||
| Safety Protection | Emergency stop, surge, over/under voltage, overcurrent, ground, leakage, over temp | |||
| RCD built-in | Yes, AC 30mA + DC 6mA | |||
| Work altitude | ≤ 2000 m | |||
| Storage temperature | -30°C ~ +85°C | |||
| Working temperature | -20°C ~ +50°C | |||
| Operating humidity | 5% ~ 95% no condensation | |||
| Installation location | Indoor or outdoor, ventilated, no flammable gases | |||
| Cooling | Natural cooling | |||
| Unit size | H=1500mm, W=340mm, D=198mm | |||
| Mounting | Floor standing | |||
| IP grade | IP54 | |||
| Material | Metal plate shell with powder coating | |||
